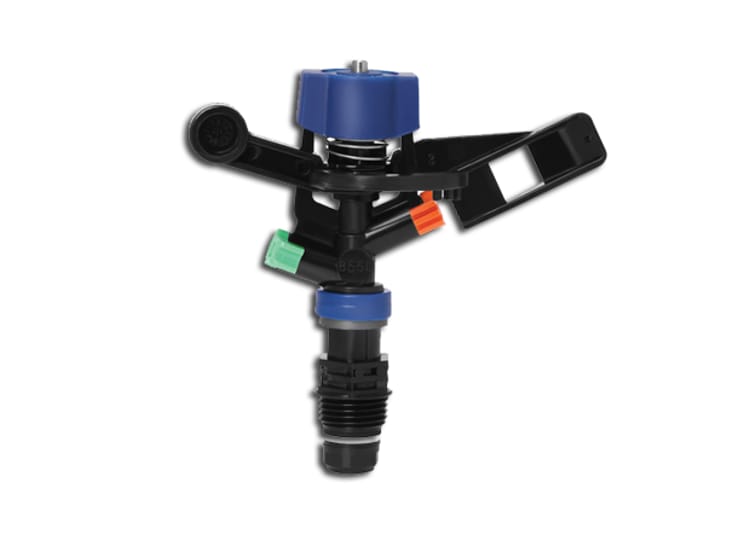

D-Net™ 8550

Durable impact sprinkler for open-field crop and vegetables irrigation

D-Net™ 8550, 15mm impact sprinklers, with 3D diffusion arm, guarantees excellent crop uniformity for open-field crop and vegetables irrigation, with sprinkler spacing up to 13x12 metres. Precise and water-efficient distribution also offers an ideal solution for crop germination and orchard cooling.

Superbly uniform water distribution with maximum water-use efficiency
Long-lasting performance and labour-saving maintenance

Why D-Net™ 8550?

Higher and better yields.
The D-Net™ 8550 provides outstanding water-distribution uniformity, due to the unique 3D arm enabling, the highest uniformity in the market, respective to its flow rate and installation spacing.
The D-Net™ 8550 provides maximum water-use efficiency.
Saves labour costs and multiple expenses on maintenance.
High robustness – The D-Net™ 8550 has special design that makes the sprinkler more resistant and ensures high performance for a long product life.
Extended product life – The D-Net™ 8550 is made of UV-protected materials, making it durable under all climate conditions and with any applied nutrients.
Flexible installation – Can be installed on solid sets or on portable field stands.
Easy to maintain – A special nozzle-key is designed to allow simple cleaning of the nozzle.

Specifications of D-Net™ 8550

7 different nominal flow rates: 510, 580, 680, 810, 940, 1135, 1275 ℓ/h. Nominal flow rates at 25 m pressure.
Recommended working pressure: 20 - 30 m (at the sprinkler head).
Wherever sand exceeding 2 ppm exists in the water, a Hydrocyclone is to be installed to protect the system. When sand/silt/clay solids exceed 100 ppm, pretreatment will be applied according to Netafim™ expert team’s instructions.
Water trajectory: 24 degrees
Inlet connection: 15 mm male threaded.
Colour-codednozzles for easy identification.
