DripNet PC™ TWD, MWD & HWD

DripNet PC™

THE DRIPPERLINE FOR UNIFORM ON-SURFACE DRIP IRRIGATION IN ANY TOPOGRAPHY OR WATER CONDITION WITH THE SHORTEST ROI. PERIOD.

DripNet PC™ integral pressure compensated self-cleaning dripperines deliver the optimal cost-performance ratio when irrigating sloping terrain, uneven topographies and long crop rows.

Ideal for irrigation of multi-seasonal row crops and orchards in flat and complex topographies
Ultra-wide and short water passages make this dripper resistant to clogging even in harsh water conditions

Why DripNet PC™?

Pressure compensated: Precise and equal amounts of water are delivered over a broad pressure range.
100% uniformity of water and nutrient distribution along the laterals.
Continuously self flushing: Continuously flushing debris, throughout operation, not just at the beginning or end of a cycle, ensuring uninterrupted dripper operation.
Self-flushing system with wide filtration area improves resistance to clogging which allows reduction in filtration requirements, and increasing filtration efficiency.
TurboNet™ labyrinth assures wide water passages, large deep and wide cross section improves clogging resistance.The water is drawn into the dripper from the stream centre, preventing the entrance of sediments into the drippers.

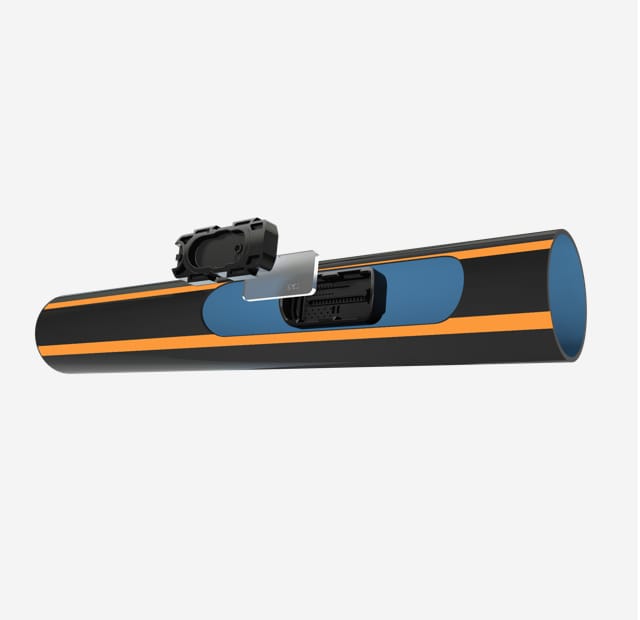

Specifications of DripNet PC ™

Variety of flow rates: 0.40, 0.60, 1.00, 1.60, 2.00, 3.00 & 3.80 ℓ/h
Pressure-compensating range: 0.5 - 4.0 bar
Recommended filtration: according to dripper flow rate. Filtration method is to be selected based on the kind and concentration of the dirt particles existing in the water. Wherever sand exceeds 2 ppm in the water, a Hydrocyclone is to be installed before the main filter. When sand exceeds 20 ppm and when total suspended solids exceed 150 ppm, pre treatment will be applied according to Netafim™ expert team’s instructions.
Double TurboNet™ labyrinth with large water passage.
To be “welded” into thin-, medium-, & thick-walled dripperlines (0.40, 0.60, 1.00 & 1.20 mm).
Injected dripper, very low CV.
Injected silicon diaphragm.
High UV resistance. Resistant to standard nutrients used in agricultural.
