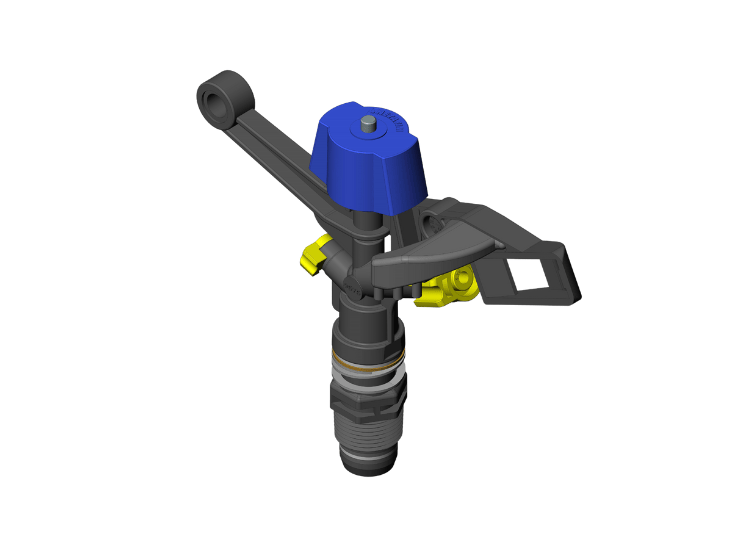

D-Net™ 9575

Ultra-durable impact sprinkler for highly uniform field crops and vegetables irrigation

D-Net™ 9575 3/4" impact sprinklers deliver optimal water-distribution uniformity for your field crops and vegetables. Featuring an innovative 3D diffusion arm, the D-Net™ 9575 is the perfect choice for precision irrigation of fields that require spacing up to 15 x 18 meters.

Maximum water distribution uniformity and maximum water use efficiency
Delivers long-term performance in any climate, with any nutrient or chemical applications

Why D-Net™ 9575?

High and uniform crop yields: Innovative 3-D diffusion arm ensures the highest level of water distribution uniformity in the market, respective to its flow rate and installation spacing.
Saves water: Thanks to D-Net’s outstanding water distribution uniformity, even with wide spacing of up to 15mx18m.
Long-lasting performance: Tough UV-protected materials withstand all climate conditions, applied nutrients and chemicals ensuring trouble-free operation over the product’s life.
Versatile installation: Installs on solid sets or on removable field stands.
Cost-saving maintenance: Special nozzle-key is designed to make cleaning debris from the nozzle simple and quick, even under pressure.

Specifications

Variety of nominal flow rates: 1200, 1400, 1600, 1800, 2000 l/h.
Nominal flow rates at 3.0 bar pressure
Recommended working pressure: 2.0 to 4.0 bar (at the sprinkler head).
Water trajectory angle: 24 degrees
Inlet connection: 3/4” male thread
Color-coded nozzles for easy identification

Downloads

Product sheets

Netafim D-Net™ 9575 Technical Product Sheet (PDF)
