DripNet PC™ ASXR

The drip Line optimized for subsurface drip irrigation with active protection against root intrusion and clogging and a perfect cost-performance ratio

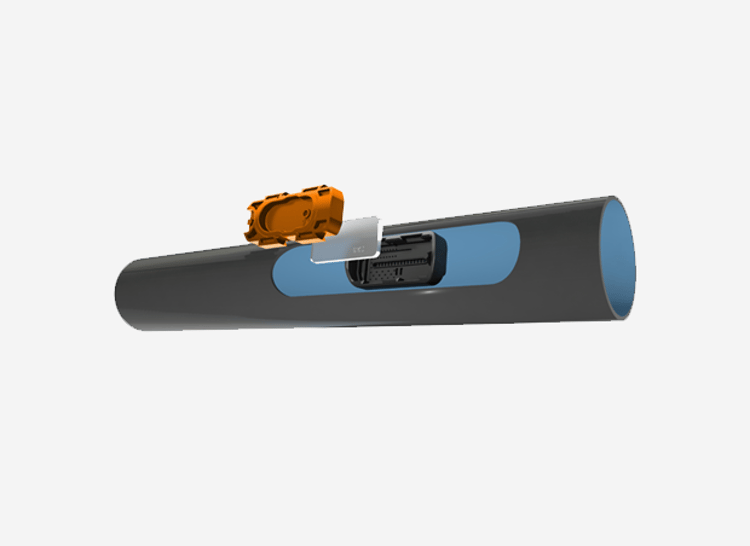

DripNet PC™ ASXR integral pressure compensated self-cleaning drippers combine Anti-Siphon technology with extra root intrusion resistance (ASXR) to deliver long-lasting uniform subsurface irrigation in any topography.

Embedded copper oxide for long-lasting protection against root intrusion
Anti-Siphon mechanism prevents dirt suction and reduces clogging risk during system draining

Why DripNet PC™ ASXR?

SUPERB ROI: Achieve excellent subsurface drip irrigation performance for your budget - without compromising a drop on reliability or crop uniformity.
DOUBLE-ACTION ROOT PROTECTION: Physical root barrier protects against root intrusion into the dripper while innovative non-migrating copper oxide resin mixed into the dripper cover inhibits root growth within the dripper labyrinth throughout its lifespan.
SYSTEM-DRAINING PROTECTION: Anti-Siphon mechanism prevents suction of sand, dirt and contaminants into the drip Line during system draining - eliminating the risk of clogging, or partial clogging.
UNIFORM FLOW IN ANY TOPOGRAPHY: Wide effective filtration area and short water passage, plus self-cleaning technology, assures 100% uniformity of water and nutrient distribution in long laterals and sloping or uneven terrain.
NEVER CLOGS: Self-flushing system continuously flushes out debris to ensure optimal dripper performance and increased filtration efficiency even with harsh water.
PERFECT FIT FOR YOUR NEEDS: 7 different flow rates, (0.4 up to 3.8 L/H) and wide range of pipe diameters can address any condition or application.

Specifications

Variety of flow rates: 7 different flow rates (0.4, 0.6, 1.0, 1.6, 2.0, 3.0, 3.8 L/H) can address any condition or application
Wide range of pipe diameters: 12.0 mm - 23.0 mm
Wall thickness: 0.9 mm, 1.0 mm, 1.2 mm
Pressure compensating range: 0.4 - 5.0 bar
Pressure-compensating range: 0.25, 0.40, 0.60 - 2.5, 3.0, 3.5 bar (according to flow rate model)
Superb UV and chemical resistance
