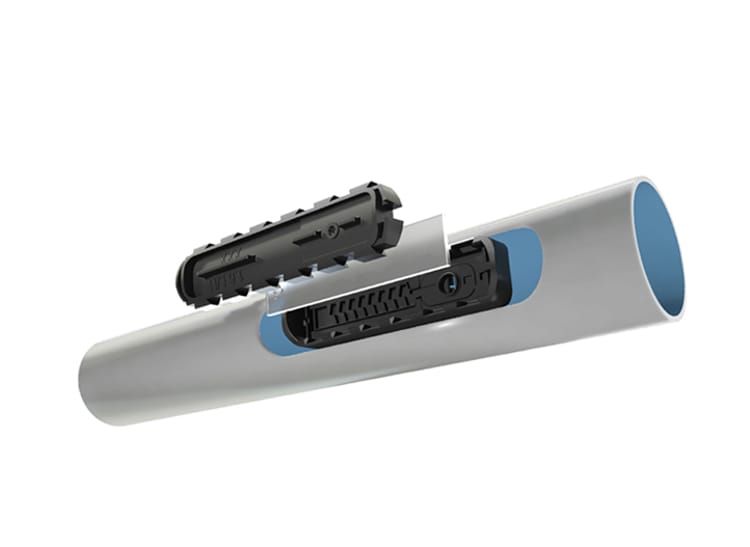

UniGray™ CNL & HCNL

Solar-radiation deflecting drip line with non-leakage features for high performance pulse irrigation systems in greenhouses and soilless crops.

In addition to delivering absolutely uniform irrigation of water and nutrients and enabling pulse irrigation, UniGray™ CNL & HCNL PC drippers with solar-radiation deflecting tubing help maximize light and thermal efficiency in greenhouses, soilless cultures, nurseries and pot irrigation.

Perfectly uniform water distribution during intensive or pulse irrigation
Anti-Drain (CNL & HCNL) mechanisms eliminate “drainage & refill” effect

Why UniGray™ CNL & HCNL?

Efficient pulse irrigation: When pressure drops at the end of an irrigation cycle, the CNL/HCNL mechanism closes the dripper keeping pipes full of water ensuring uniform irrigation during short cycles.
Solar-energy deflecting pipes: Light-colored dripperlines are designed to prevent absorption of sunlight, in order to optimize available radiation for photosynthesis.
Anti-clogging: Anti-Siphon mechanism blocks suction of dirt and other contaminants into the dripline during system draining - eliminating the risk of clogging, or partial clogging.
Uniform flow rates: Industry’s biggest filtration area and water passage assures 100% uniformity of water and nutrient distribution even in long laterals and complex topography.
Optimal performance: Self-flushing system continuously flushes out debris to ensure optimal dripper performance year after year.
Root protection: A physical barrier stops root intrusion without reliance on chemicals.
Long-lasting: Ultra-durable, UV-stable lines are built to resist damage from heavy machinery, soil insects, sun exposure and re-coiling.

Specifications

Variety of flow rates: 5 different flow rates (0.7, 1.0, 1.6, 2.3, 3.5 L/H) can address any condition or application
CNL range: 1.0 – 4.0 bars / HCNL range: 1.5 – 4.0 bars
Wide range of pipe diameters: 16.0 - 23.0 mm
Wall thickness: 0.9mm, 1.0mm, 1.2mm
Superb UV resistance and unique internal black layer that prevent micro-organizem and algae development

Downloads

Product sheets

UniWhite CNL & HCNL product sheet (PDF)

Technical information

UniWhite CNL & HCNL technical product sheet (PDF)

Other Uniram™ models

UNIRAM™ AS

Deciduous plantation and tree irrigation and permanent (10 or more seasons)
subsurface row crops.

Uniram™ CNL

Greenhouses, deciduous plantations and tree irrigation; permanent (10 or more seasons) with Anti Drain mechanism.

Uniram™ HCNL

Greenhouses and precise irrigation applications; permanent (10 or more seasons) subsurface row crops; deciduous plantations and tree irrigation with Anti Drain mechanism in complex topographies.

Uniram™ RC

Permanent (10 or more seasons) row crops, deciduous plantations and tree irrigation.

Uniram™ ASXR

Permanent (10 or more seasons) subsurface row crops with extra root protection.

Uniwine™ AS

Vineyard subsurface drip irrigation

Uniwine™ RC

Vineyard on-surface drip irrigation.
