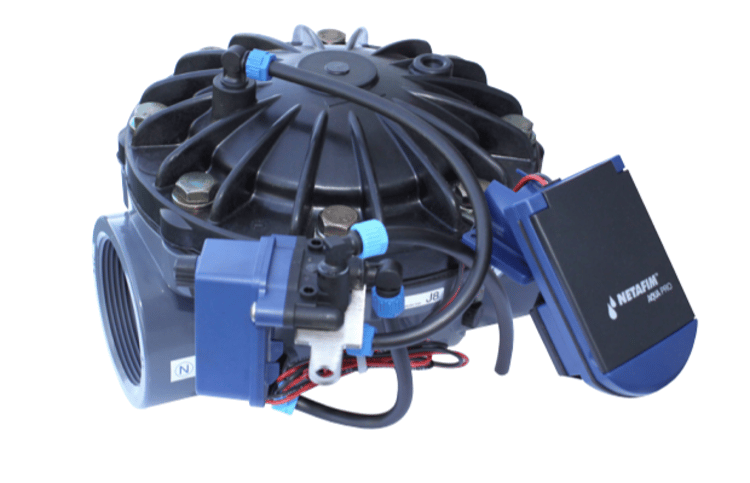

Battery Operated Control Valves

LOW-COST SOLUTION FOR AUTOMATIC IRRIGATION

Battery Operated Control Valves offer the option of an automatic valve when power or wiring is not available or affordable. This low-cost solution for automatic irrigation is ideal for seasonal crops. The combination of a 2-Way or 3-Way Solenoid and Aqua Pro Single Valve Controller ensures automatic valve operation with very low energy consumption. Flexible programming with up to five operating modes.

Product Advantages

  • Low cost automatic valve operation without additional wiring costs.
  • Corrosion-proof components and water-resistant controller.
  • Aqua Pro Controller’s 9 Volt DC battery is the only power required to turn the valve on and off.
  • Available on any Nylon, PVC, Iron or Bronze valve.
  • Ideal for seasonal or annual crops requiring system portability.

Applications

  • Agriculture or Greenhouse/Nursery
  • Where power or wiring is not available or not affordable
  • Retrofit for manual systems
  • Indoor or outdoor installations
  • Addition of pressure reducing or any other control function

Specifications

Electrically controlled valve components:

  • 2-Way Nylon Valve or 3-Way Nylon, PVC, Iron or Bronze Valve
  • Battery operated Aqua Pro Single Valve Controller
  • 3-Way Valves include 12VDC Aquative latching solenoid
  • 2-Way Valves include built-in 12VDC latching solenoid

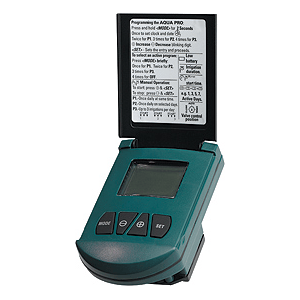

Aqua Pro Controller

  • One controller mounts on each valve and is individually programmed
  • Valves can be programmed to operate in sequence
  • Easy access with four button programming and a large LCD display
  • Five operating modes provide program flexibility



Aquative Solenoid for 3-Way Valves

  • Actuator valve converts electric commands to hydraulic
  • Very low energy consumption
  • Large orifice allows operation with all types of water and large size valves
  • Manual override – Close, Auto, Open functions
  • Two main parts – water isolated actuator and 3-Way hydraulic control valve
Aqua Pro Controller
