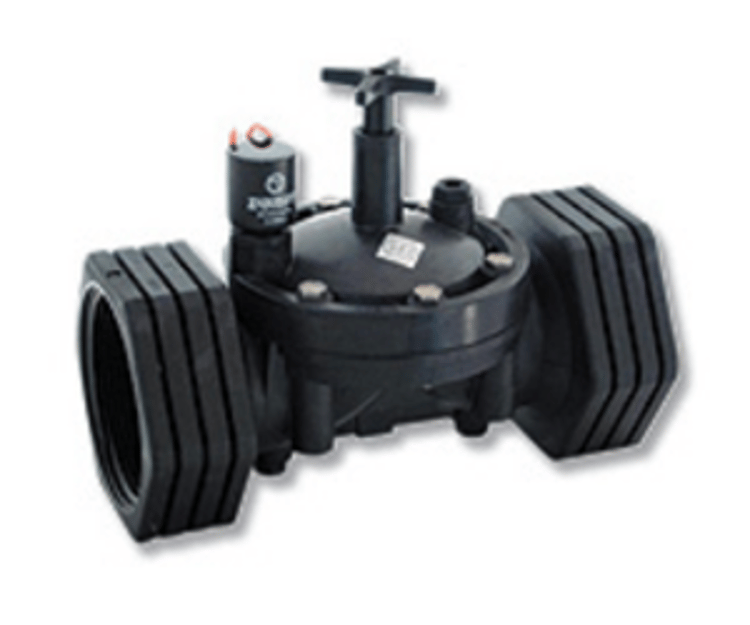

Electric PBI Throttling Valves

Electric PBI Throttling Valves are ideal for small agricultural irrigation zones. Simple installation, no moving parts and high resistance to corrosive water make these valves dependable and reliable day after day. The built-in 2-way solenoid has a low power requirement. Available in 1″ to 3″ sizes with a durable glass reinforced nylon body.

Why Electric PBI Throttling Valves

Durable, glass reinforced nylon construction provides superb hydraulic performance.
Large internal water passage with no moving parts in the flow path prevents clogging.
Built-in 2-Way Solenoid with low power requirement for ease of operation and reliability.

Product Advantages

Simple installation either vertically or horizontally.
High resistance to corrosive water containing fertilizer and chemicals.
Standard with a flow control (throttling) handle

Applications

Small Agricultural Irrigation Zones
Greenhouse and Nurseries
Cooling Systems
Ultra high flow or low flow capacity irrigation systems

Specifications

Available Sizes: 1”, 1 1/2”, 2” and 323
Maximum Working Pressure: 1” – 115 psi and 2” to 323 – 150 psi
Maximum Water Temperature: 140° F
Connections: Female Threaded NPT
Electrical Specifications:
- Voltage – Standard 24 VAC, 60 Hz
- Inrush Current – 29mA
- Holding Current – 14mA
- Allowable Voltage Variation: 10%
