FERTIONE™ PLUS

A PLUG-AND-PLAY TWO CHANNEL FERTILIZER/ACID DOSING UNIT FOR PRECISE NUTRIGATION™ The FertiOne Plus is a fully configurable, simple to operate two channel fertilizer/acid dosing unit. It’s the perfect solution for open field sites fitted with electricity where injection of up to two fertilizer solutions is needed. It ensures the highest efficiency and can be connected to any external 24VAC controller.

PRECISION FERTIGATION MADE SIMPLE

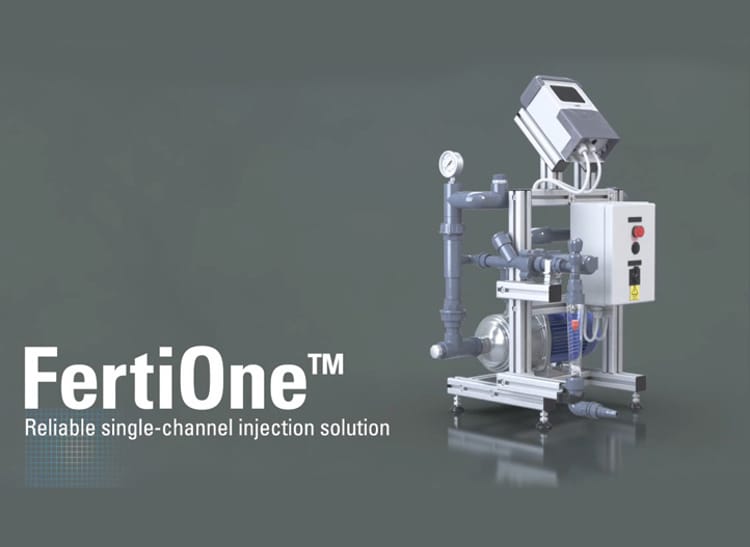

Looking for a cost-efficient, straightforward fertigation solution? FertiOne™is our simplest dosing system, enabling injection of a single fertilizer with ultimate preision. It’s a plug-and-play, fully configurable, simple-to-operate single-channel fertilizer and acid dosing unit perfect for open field sites fitted with electricity. With FertiOne™’s exact delivery of the right amount of nutrients at the right time, precision fertigation is simpler than ever.



Fertione Plus

THE PERFECT NUTRIGATION SOLUTION FOR TWO CHANNEL FERTILIZER/ACID DOSING

  • A cost-effective Nutrigation™ system for soil applications with minimal investment.
  • Efficient use of water, fertilizers and energy.
  • Venturi operation principle – few moving parts.
  • Fits into an existing irrigation system and it’s easy to install and maintain.
  • Precise Nutrigation™ based on high accuracy dosing channels.
  • Made from high-quality components and PVC NPT Schedule 80 with an aluminum, corrosion-resistant frame and adjustable legs.
  • Visual flow meters and adjustable needle valves provide accurate dosing control.
  • Connection to an NMC Controller or other 24VAC controllers allows advanced Nutrigation control.
  • Easy to install and maintain.

Included Components

  • Two Venturi operated dosing channels
  • Quick action 24VAC dosing valve
  • Pressure gauge
  • Stainless steel dosing booster
  • Continuous acting air vent
  • Check valve
  • Dosing booster switch box with motor protection
  • Visual flow meters with adjustable needle valves
  • High-quality components and schedule 80 PVC piping
  • Aluminum, corrosion-resistant frame with adjustable legs

Applications

  • Open Field Crops and Orchards

Specifications

  • Supports up to 80 psi mainline pressure
  • 2 dosing channels up to 158 GPH
  • 24VAC electric dosing channels with manual override
  • 440VAC three phase pump with onboard motor protection and 24VAC remote start relay
  • For other technical specifications, contact Netafim USA
