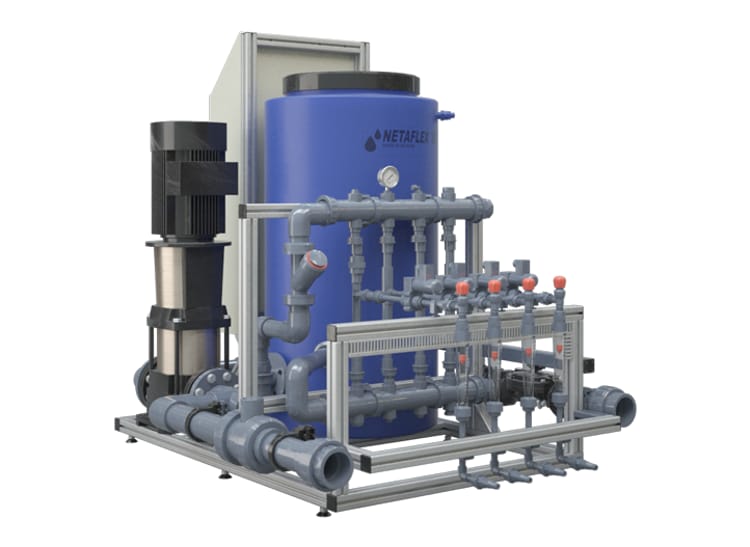

NETAFLEX™ 3G

NetaFlex 3G is a modular dosing system that easily integrates Netafim controllers and monitoring systems. It provides a high level of dosing precision and uniformity for greenhouse crops. It is easy to install and operate while scalable to an expanding greenhouse operation.

State of the Art Mixing Tank Dosing System with a Nutrigation Controller

NetaFlex 3G is a modular dosing system that easily integrates Netafim controllers and monitoring systems. It provides a high level of dosing precision and uniformity for greenhouse crops. It is easy to install and operate while scalable to an expanding greenhouse operation.

NetaFlex™ 3G
NetaFlex 3G

Ideal for Open Fields, Nursery and Greenhouse Applications

  • A modular, cost-effective Nutrigation™ system for soil and substrate applications.
  • Precise Nutrigation™ based on high accuracy dosing channels with recipes that can be changed quickly and efficiently.
  • Allows efficient use of water, fertilizers and energy.
  • Designed for any application where quantitative or proportional Nutrigation™ is required.
  • Venturi operation principle with few moving parts.
  • Fits into an existing irrigation system and it’s easy to install and maintain.
  • EC and pH sensors ensure the most precise and accurate injection rates.
  • High-quality components and PVC piping with an aluminum, corrosion-resistant frame and adjustable legs.
  • A variety of accessories and peripherals can be integrated into the NetaFlex to enhance its functions.

Product Advantage

  • Precise EC and pH control assists in delivering a high quality product with outstanding yields.
  • Deliverers a consistent quantity or ration of nutrients in a homogenous solution via the open mixing tank design.
  • Works with a wide range of dosing channel flow rates.
  • A single NetaFlex accomdates nurseries from .25 to 25 acres.

Application

  • Greenhouse Precision Fertigation

Specifications

  • Up to 6 Fertilizer/Acid Dosing Channels
  • pH Regulation with Acid and Alkali Dosing Channels
  • Dosing Channel Flow Rate: 1 to 158 GPH
  • Up to Two EC and Two pH Sensors
  • Ten Fertigation Recipes – with recipe selection for each irrigation shift
  • Pre-assembled with Netafim NMC Pro Controller
  • System Flow Rate: 13 to 282 GPM
  • System Pressure: 29 to 100 psi
  • Optional Remote Access and Monitoring through NMC Air
