Product Advantages
- Chemical injection at rates of over 470 GPH to as low as 0.5 GPH depending on injector size and operating pressure.
- Extremely uniform injection rate from start to finish at nominal system flows rates.
- Venturi injectors provide the most cost-effective method of introducing chemicals into a pressurized irrigation system.
- Easy installation with small size and lightweight design while providing maximum flexibility in confined spaces.
Applications
- Fertigation
- Chemigation
Specifications

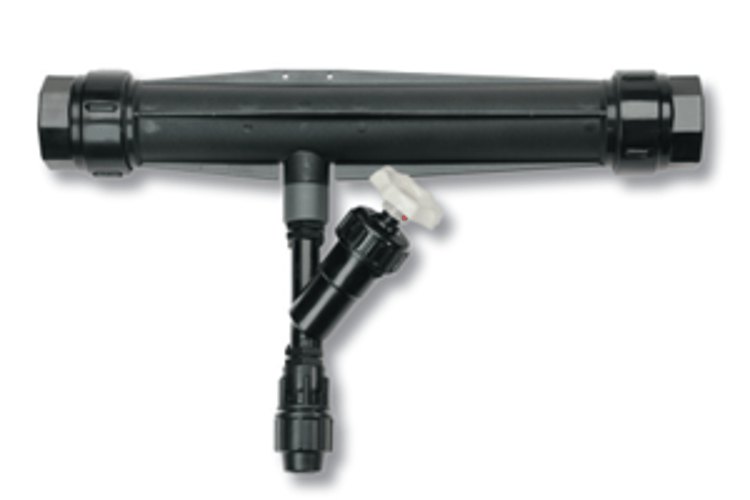

- 2″ Fertilizer Injector: Standard with check valve and throttling valve assembly.
- 3/4″ Fertilizer Injector: Standard with suction hose and strainer, check valve and throttling valve assembly and a selection of restriction orifices to allow the unit to accurately inject chemicals at very low flow rates.
- Components: Manufactured from special plastics that are resistant to most common agricultural chemicals, acid, and chlorine.
- Multiple Units: Can be manifolded together to provide simultaneous injections of compatible chemicals or to double injection rates.
