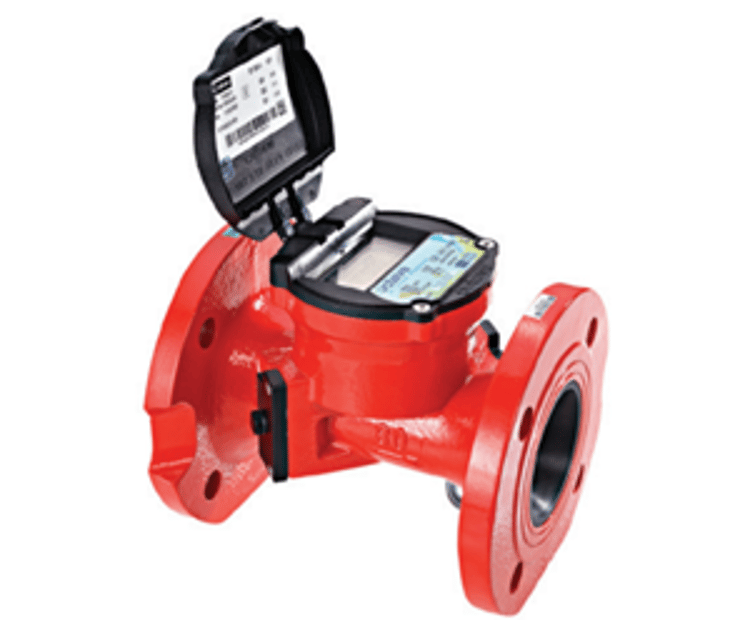

Octave® Ultrasonic Water Meters
Octave® Ultrasonic Water Meters

Octave® Ultrasonic Water Meters

Octave® Ultrasonic Water Meters have a ± 1.5% accuracy for nominal flow rates. The vacuum sealed and tamper proof register provides durability and long-term performance. A multi-line digital readout display provides immediate reporting and visual indicators for critical conditions. Lithium batteries provide a 10 year life expectancy. Octave also offers a 5 year pro-rated warranty – the industry’s longest.

Octave® Ultrasonic Water Meters

Why Octave Water Meters?

  • Double-beam ultrasonic sensors provide highly accurate flow data and reliable operation.
  • No impeller or moving parts in the flow path provides for unrestricted, low pressure loss flows.
  • Reduced maintenance of wear-prone parts commonly found in other meters.
  • Flow ranges from <1 GPM to 5,500 GPM.
  • Multi-line readout screen provides complete flow and volume information along with:
    • Leak detection
    • Flow direction
    • Output mode
    • Battery level
    • Alarms and errors
    • Active communication mode
  • Vacuum sealed and tamper proof IP68 register provides durability and long-term performance.
  • Lithium batteries provide a 10 year life expectancy.
Advantages
Advantages

Product Advantages

  • Each meter has a unique, unalterable bar-coded serial number for identification.
  • Standard registers are programmed to log and display both forward and reverse flow. Physically reversing the meter will not decrease the forward flow totalizer.
  • Each meter ships with a certificate verifying flow accuracy with a ± 1.5% accuracy for nominal flow rates.
Specifications
Specifications

Specifications

  • Sizes: 2″, 3″, 4″, 6″, 8″, 10″, and 12″
  • Body: Epoxy-coated cast iron with flange inlet and outlet
  • Maximum working pressure: 230 psi
  • Fluid Temperature Range: 32° to 122° F (0.1° to 50° C)
  • Connection: Flanges ANSI ISO for AWWA Connection Standard
  • Power Source: 2 ‘D’ Size non-replaceable Lithium batteries
  • Environmental Protection: IP-68, Ambient operation temperature for display: -13 to 131° F (-25° to 55° C)
  • Output (optional): Programmable single/dual open collector pulse output or externally powered 4-20 mA loop
