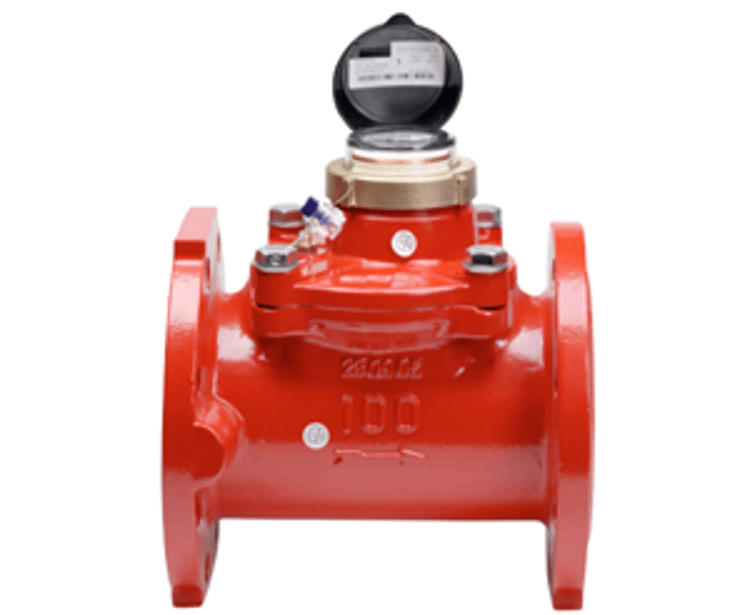

IRT Series Water Meters

IRT Water Meters are ideal for moderate to dirty water conditions. The specially designed paddle wheel measuring device provides a free water passage resulting in low head loss and the ability to accurately measure water with high levels of impurities or debris. Accuracy is achieved over a wide range of flows. Available in 3″, 4″, 6″, 8″ and 10″ sizes.

Why IRT Series Water Meters

Ideal for moderate to dirty water conditions.
Water is metered with a paddle wheel located at the top of the water passage which provides a free water passage eliminating clogging from debris.
Low headloss with the ability to accurately measure water with high levels of impurities or debris.
Bearings are constantly flushed during operation to eliminate deposits of solids.
Registers are stainless steel encapsulated and guaranteed not to accumulate moisture or fog.

Product Advantages

Simple maintenance with field replaceable calibrated measuring unit.
High level of accuracy (±2%) is achieved over a wide range of flows.
Wide selection of register options.

Specifications

Sizes: 3″, 4″, 6″, 8″ and 10″
Maximum Working Pressure: 230 psi
Maximum Liquid Temperature:140°F
Body Material: Cast Iron with Polyester Coating
Connections: Flange
Register Options: Reed Switch or ER Digital
Reed Switch Register Pulse Outputs: 10, 100, 32.6 or 325.9
ER digital Register Pulse Outputs: Gallons – .1, 1, 10, 100, 1000; A Feet – .0001, .001, .01, 1
Straight Pipe Installation Requirement: 10 x D upstream and 5 x D downstream (D = meter size)
