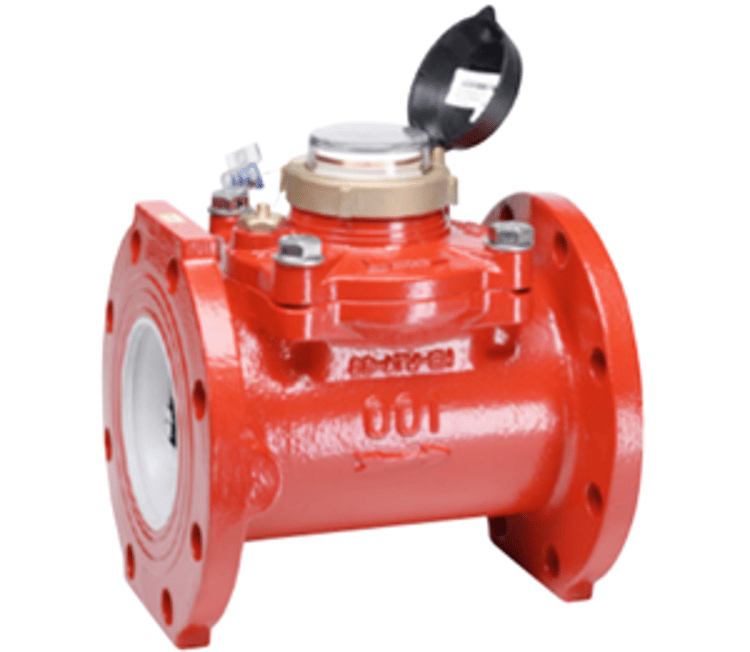

Why WST Series Water Meters
- Impeller is located in the center of the flow allowing for accurate measurements (±2%) over a wide range of flows – including low flows.
- Double magnetic transmission (repelling magnets) drives the register enabling the meter to handle high loads of sand since only the impeller is in contact with the water.
- Transmission gears are located in a sealed, dry compartment which has no contact with the water.
- Balanced impeller with equal load on front and rear gears prevents bearing wear and maintains high accuracy even after years of operation.
- Registers are stainless steel encapsulated and guaranteed not to accumulate moisture or fog.
- 3″-8″ Water Meters have built-in straightening vanes which reduce the length of straight pipe required before and after the meter.
- Wide selection of register options.
