17mm Dripline Fittings
Standard insert fittings for Techline HCVXR, CV, DL, RW, and RWP. Full range: tees, elbows, couplings, end caps.
Built Around Real-World Irrigation Problems
If your projects face tight beds, steep grades, long lateral runs, heavy root pressure, or non-potable water rules, product selection cannot be one-size-fits-all. The Techline® lineup gives you purpose-built options to solve specific field problems while keeping installation and maintenance predictable.
Nine dripline options. Three fitting systems. One complete landscape platform.
Complete the System: Fittings & Connectors
Every Techline® dripline pairs with a matching fitting system. Choose from standard 17mm insert fittings, 12mm fittings for Techline EZ, or the TechLock™ push-to-connect system for faster installation and reduced crew fatigue.
Choosing the Right Dripline for Your Landscape Irrigation Project
| Product | Copper Oxide | Reclaimed Water | Hold Back Feet | Anti-Siphon | Pressure Compensated | Min. Pressure | Emitter Warranty |
|---|---|---|---|---|---|---|---|

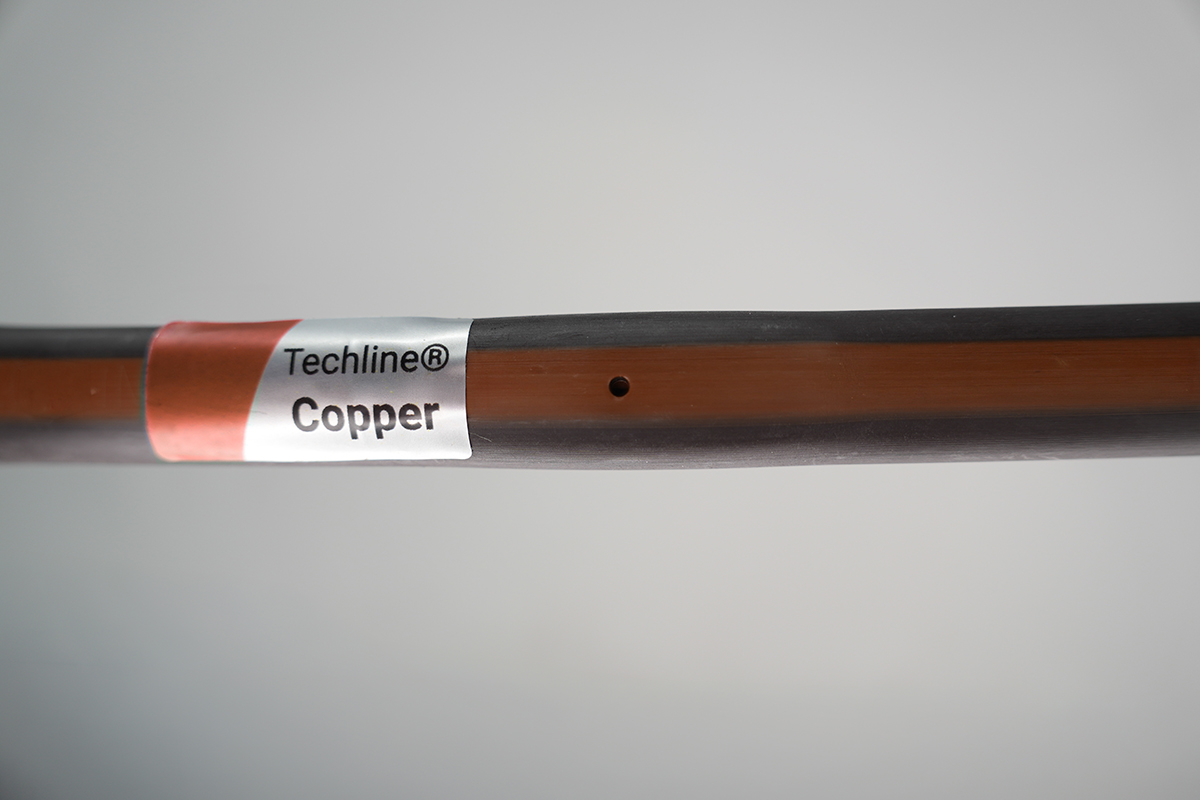

| Techline® Copper | ✓ Emitter | — | 8.3 ft | ✓ | ✓ | 21.8 psi | 7 yr MD/ 10 yr ESC |

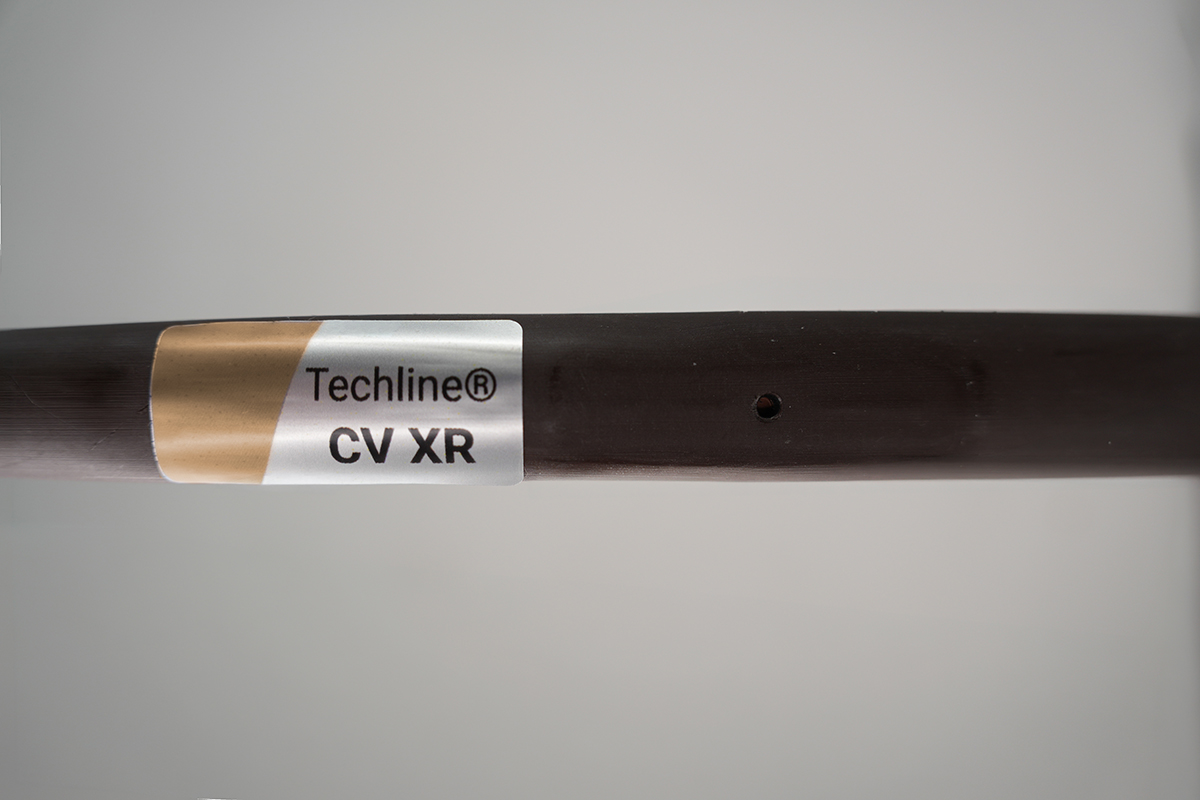

| Techline CV XR® | ✓ Emitter | — | 4.6 ft | ✓ | ✓ | 14.5 psi | 7 yr MD/ 10 yr ESC |

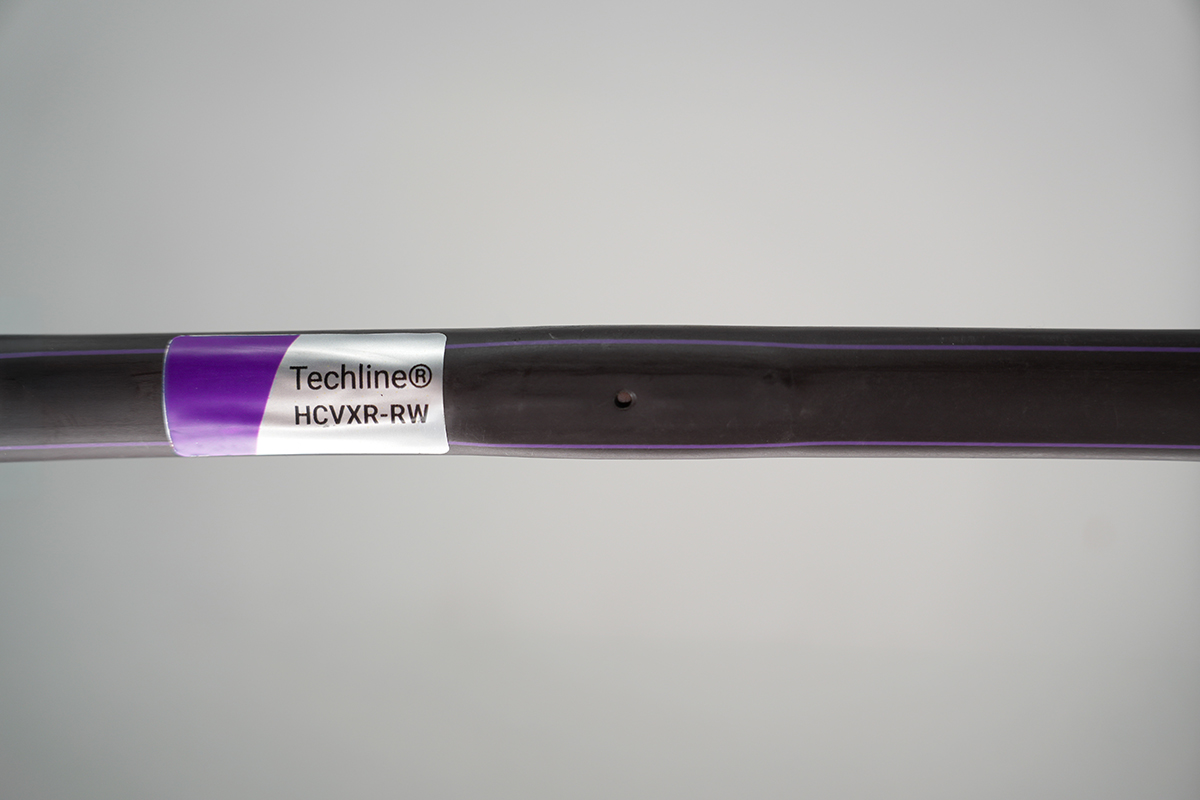

| Techline® HCVXR-RW | ✓ Emitter | ✓ | 8.3 ft | ✓ | ✓ | 21.8 psi | 7 yr MD/ 10 yr ESC |

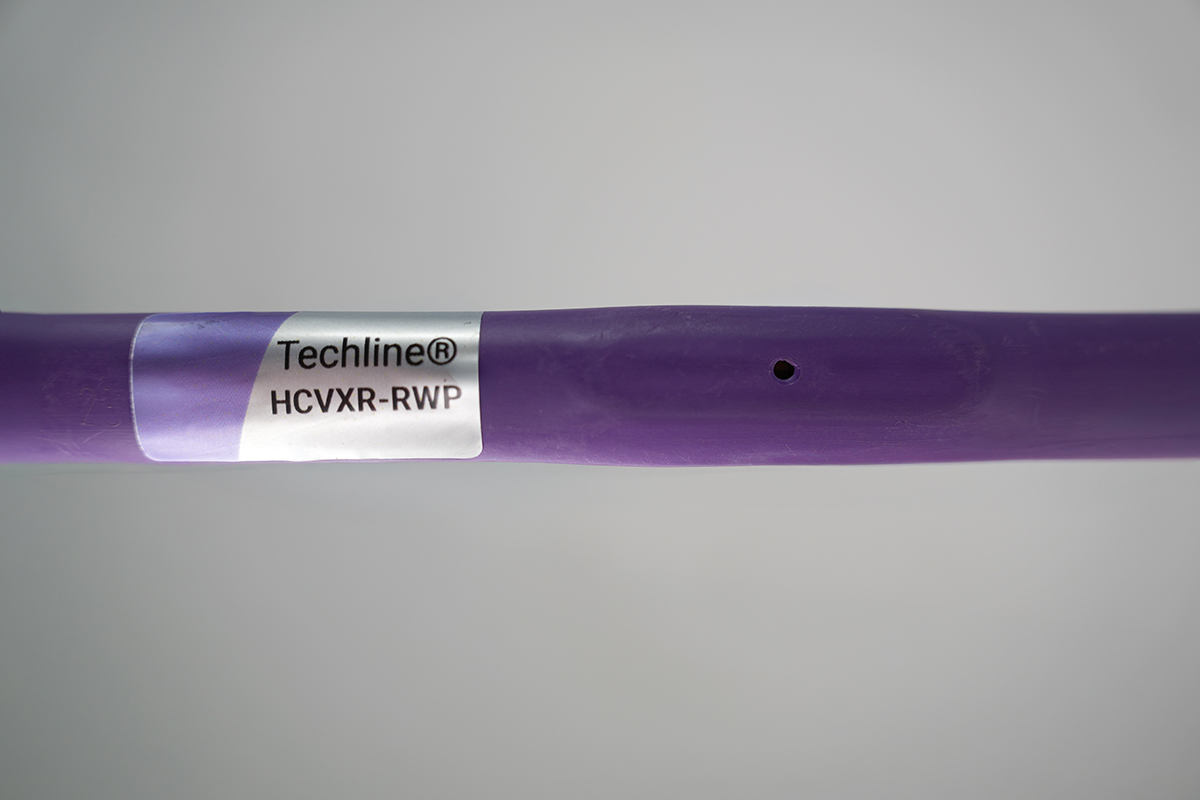

| Techline® HCVXR-RWP | ✓ Emitter | ✓ | 8.3 ft | ✓ | ✓ | 21.8 psi | 7 yr MD/ 10 yr ESC |

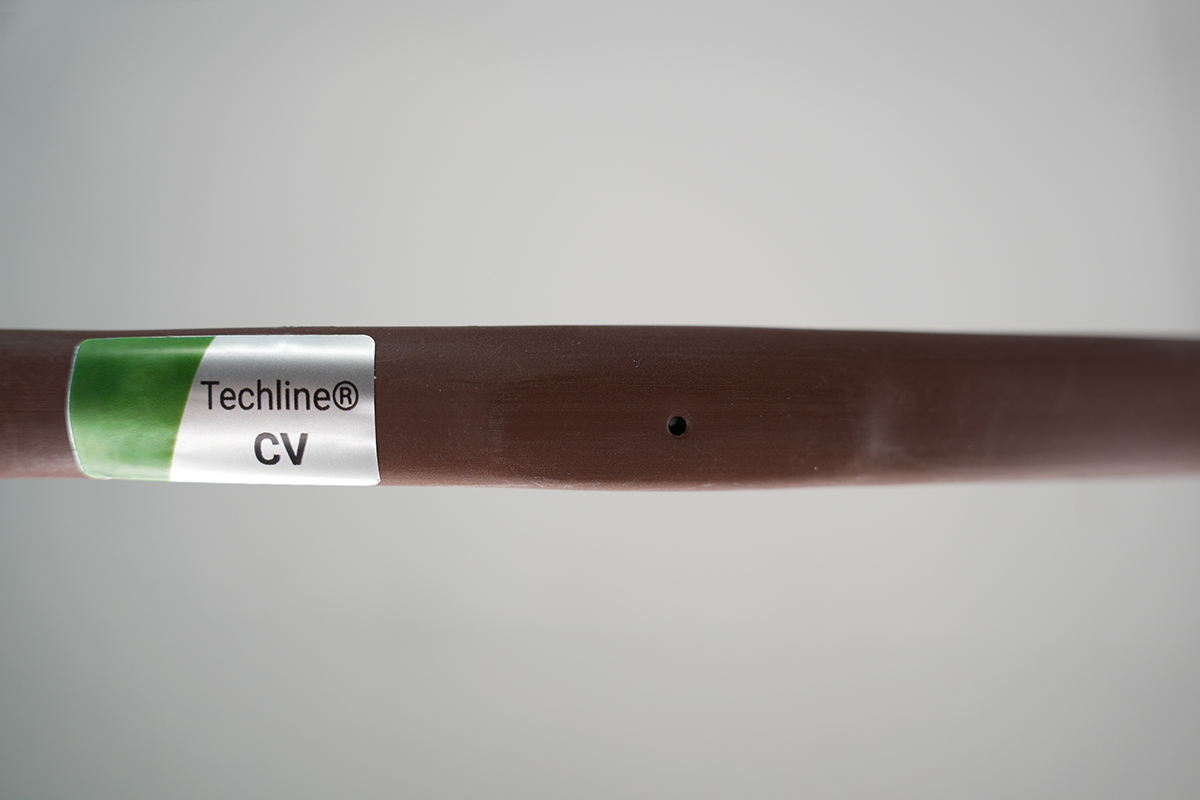

| Techline® CV | — | — | 4.6 ft | ✓ | ✓ | 14.5 psi | 7 yr MD/ 10 yr ESC |

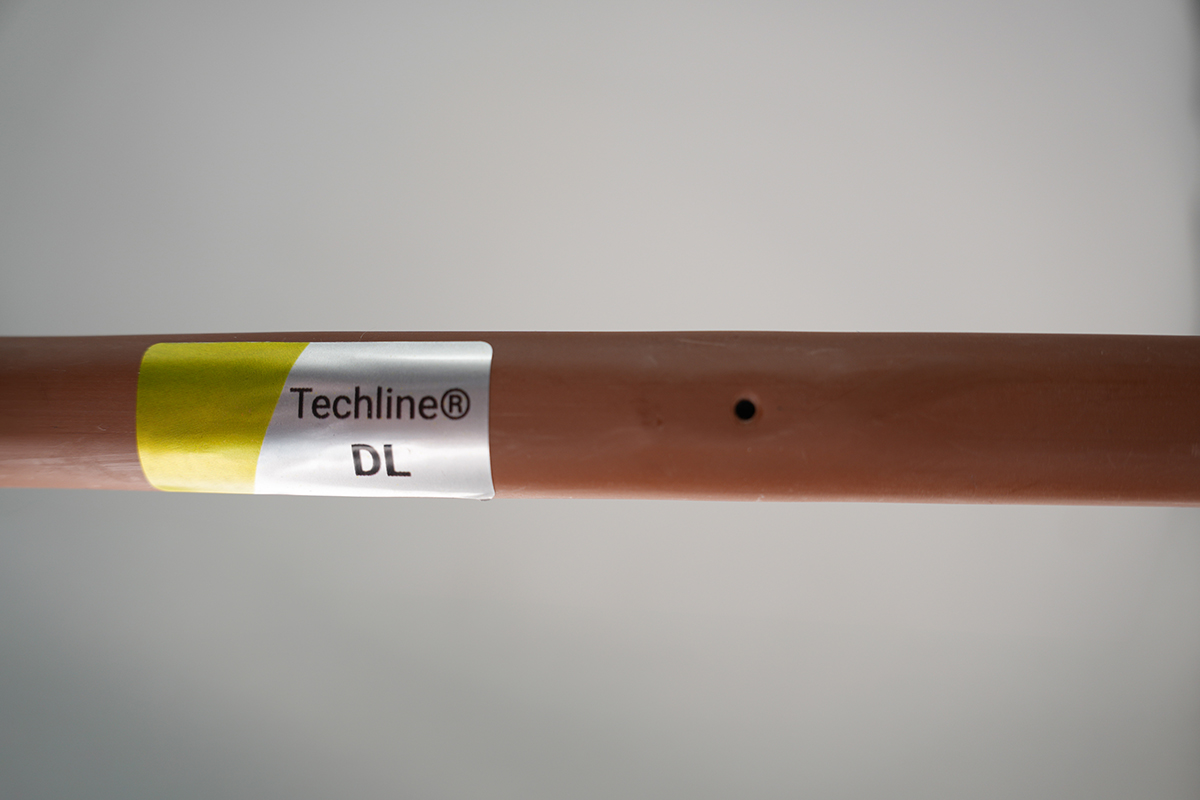

| Techline® DL | — | — | — | ✓ | ✓ | 6 psi | 7 yr MD/ 10 yr ESC |

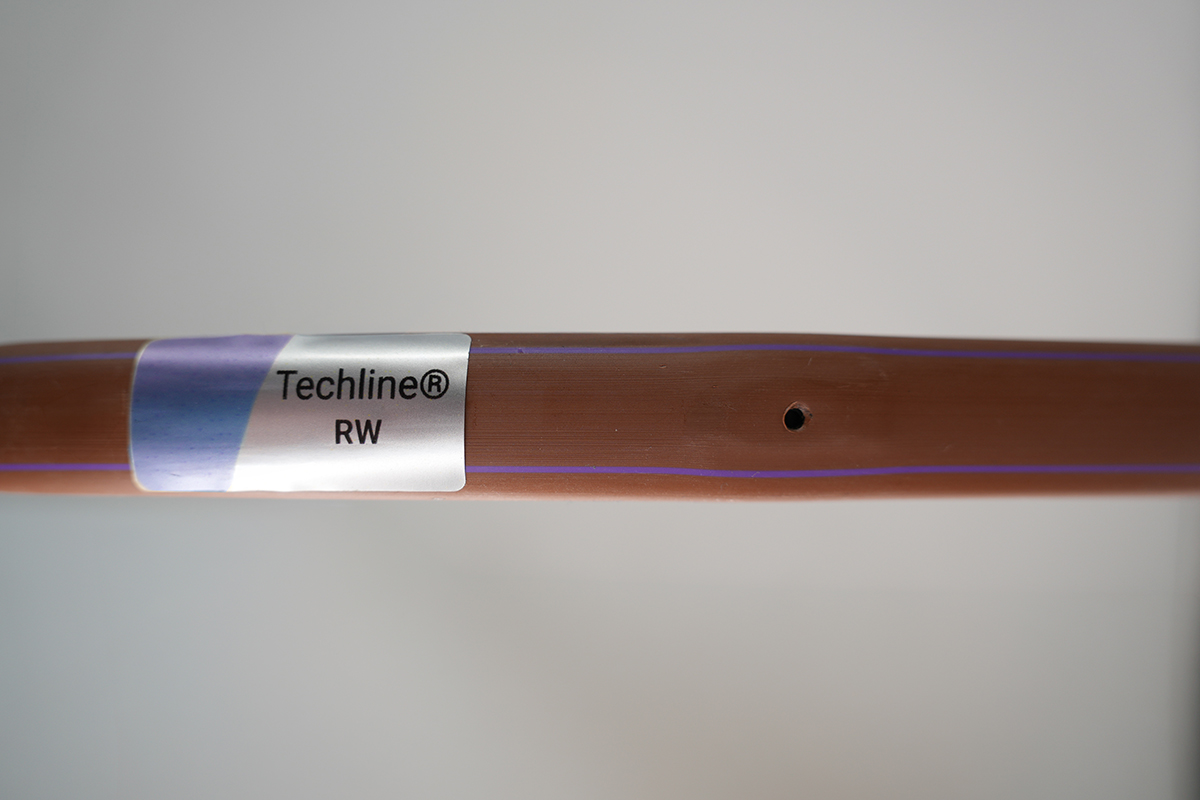

| Techline® RW | — | ✓ | — | ✓ | ✓ | 6 psi | 7 yr MD/ 10 yr ESC |

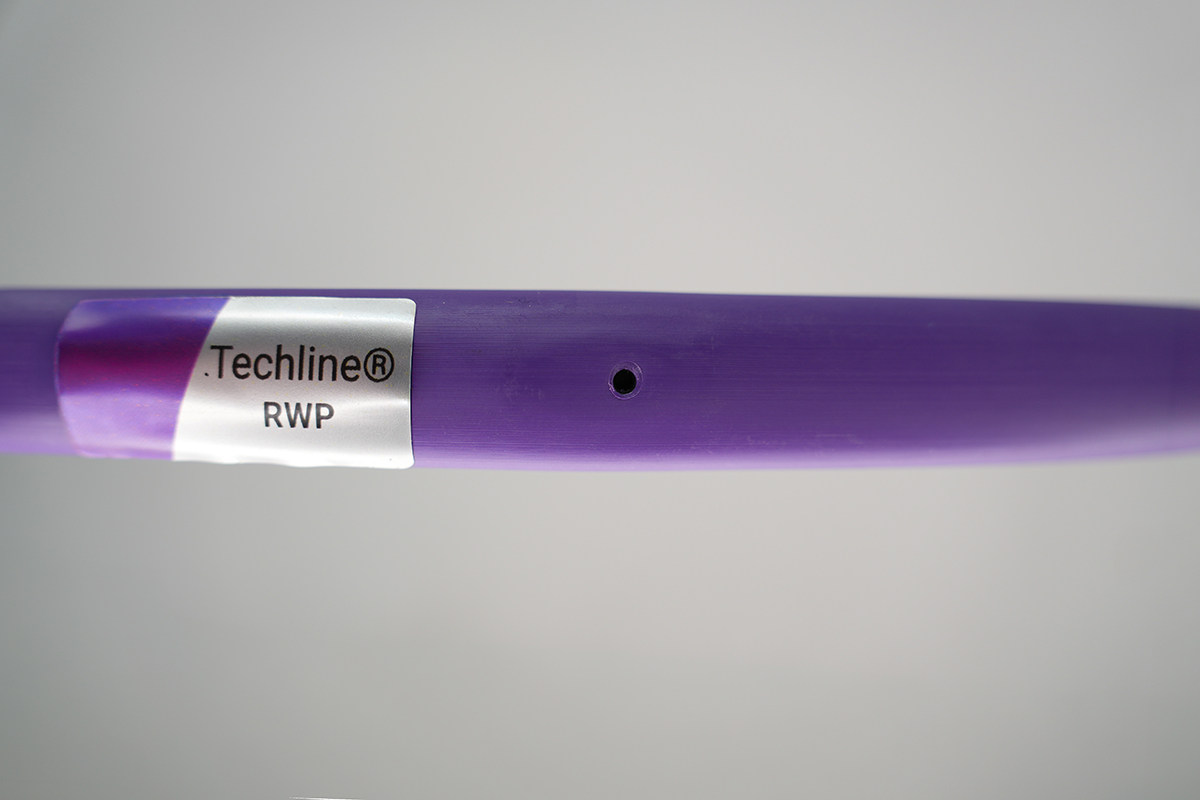

| Techline® RWP | — | ✓ | — | ✓ | ✓ | 6 psi | 7 yr MD/ 10 yr ESC |

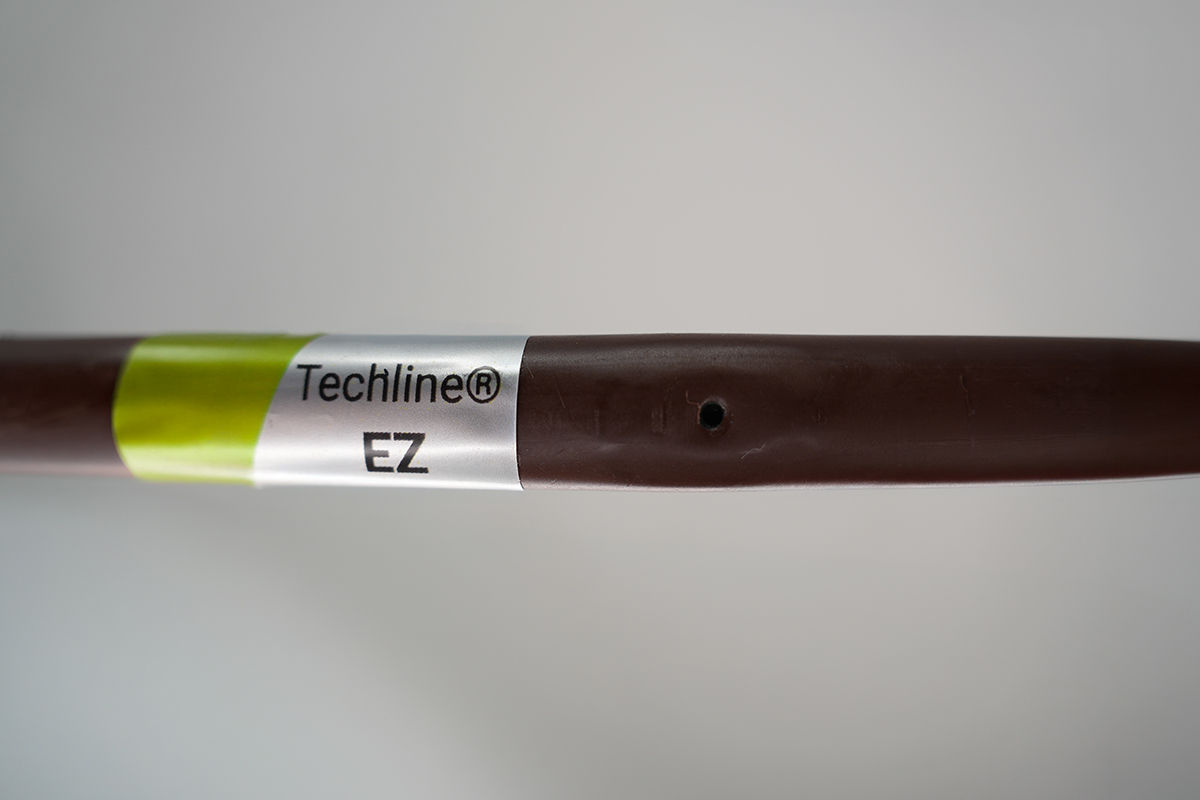

| Techline® EZ (12mm) | — | — | — | ✓ | ✓ | 6 psi | 7 yr MD/ 10 yr ESC |
Looking for more products? Download the Landscape & Turf Catalog
