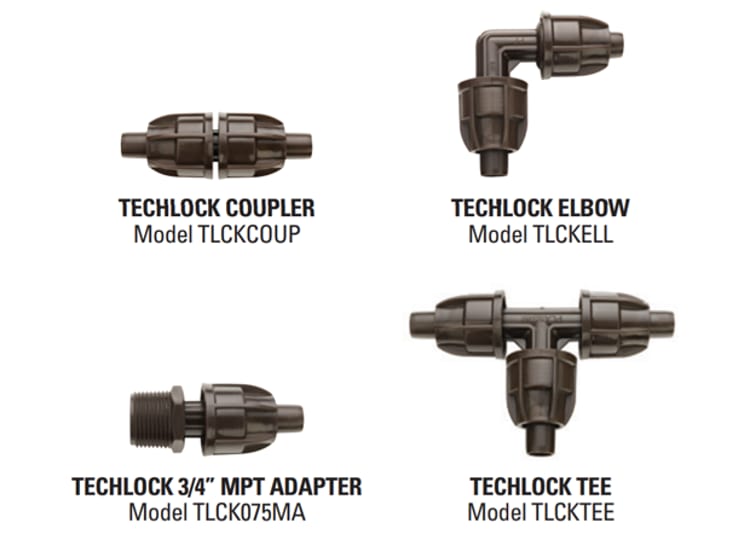

TechLock Fittings

Simple and Efficient Installation With Reduced Physical Strain
Ergonomic design enables quick field installation and reuse while reducing physical strain on installation crews.

Why TechLocl Fittings?

Industry Leading Pressure Rating
Get maximum performance and durability with our industry leading pressure rating and pullout resistance.
Warranty Ensures Confidence
Specifiers, contractors and distributors will have peace of mind with our warranty – 10 years for subsurface installations and 5 years for surface installations.
Size Range Flexibility
16mm and 17mm outside diameter size range simplifies the job for designers and contractors.
Visually Appealing Color
Dark brown color blends well with both the dripline and surrounding landscapes.

Applications

Fits Techline HCVXR, HCVXR-RW and RWP, CV, DL, RW and RWP driplines, and PE tubing

Specifications

Tubing internal diameter: 0.530” – 0.560“
Tubing wall thickness: 0.035” – 0.050“
Tubing outside diameter: 0.600” – 0.660“
Working temperature range: 32˚ F – 140˚ F
Operating pressure: 0 to 100 psi
Pull-out resistance: 67 ft-lbs.
Warranty:
10 years for below ground (subsurface) installations
5 years for above ground (surface) installations
