ScreenGuard™ Automatic Screen Filters

Your first line of defense in protecting your irrigation system.

Now offered in 3 different configurations:

Vertical | Horizontal | Twin

Groundwater or harsh water can pose a real challenge to the operation of your irrigation system. Screenguard was designed with the largest filtration area in the industry. A bigger screen means less cleaning cycles and enhanced system longevity. Screenguard offers uncompromized filtration operation with the most efficient self cleaning mechanism saving you labor and protecting your irrigation system.

Why choose ScreenGuard™ filters?

They have approved ScreenGuard™ Automatic filter as the champion!
ScreenGuard™ automatic filter has changed their yields

Watch the testimonial video to hear it straight from the field! They call ScreenGuard™ automatic filter the champion for a reason!

Ready to growth? Contact an expert

What makes ScreenGuard™ the leading screen filter in the industry?

Huge screen size allows the filter to work with higher flow rates and deal with harsh water conditions
Corrosion resistance: Filter body is made from high quality carbon steel with two-layers of coating, offering excellent corrosion resistance
Cover & Piston made from durable non-corrosive materials for easy, cost-effective and low maintenance
Extra protection: The filter screen cylinder is molded with stainless-steel 316 screen incorporating a special weave, providing an extra layer of protection to the irrigation system
Two models: Horizontal and vertical, with multiple filtration area options covering a wide range of flow rates, ensures a perfect fit for different water quality and protection requirements
ScreenGuard™ application: BT (Bluetooth) controller activated with Netafim SG App allows better control of filter performance
Multi connection types fits with any irrigation system
Variety of applications thanks to different micron rating screens

Product Advantages

Extra-large screen size allows the filter to work with higher flow rates and deal with harsh water conditions
Filter body is made from high quality carbon steel with two-layer coating, offering superb corrosion resistance
Cover and piston made from durable non-corrosive materials for easy and cost-effective maintenance
Different mesh rating screens suited for a variety of applications

Applications

Primary filtration for use with well water and/or single use dripline applications in multiple water sources
Primary filtration for micro and open field sprinkler applications in multiple water sources
Primary filtration for landscaping applications

Specifications

Minimum Operating Pressure: Horizontal & Vertical 29 psi, Twin 28 psi
Maximum Operating Pressure: 145 psi
Maximum Water Temperature:149˚ F (65˚ C)
Connection Type: Flanged, Thread
Screen Mesh Sizes: 80, 120, 150
Sizes: 2”, 3”, 3” Super, 4”, 4” Super, 6”, 6” Super 8” and 10”
Control Voltage: DC Latching
Filter Housing: 2-layer carbon steel coating

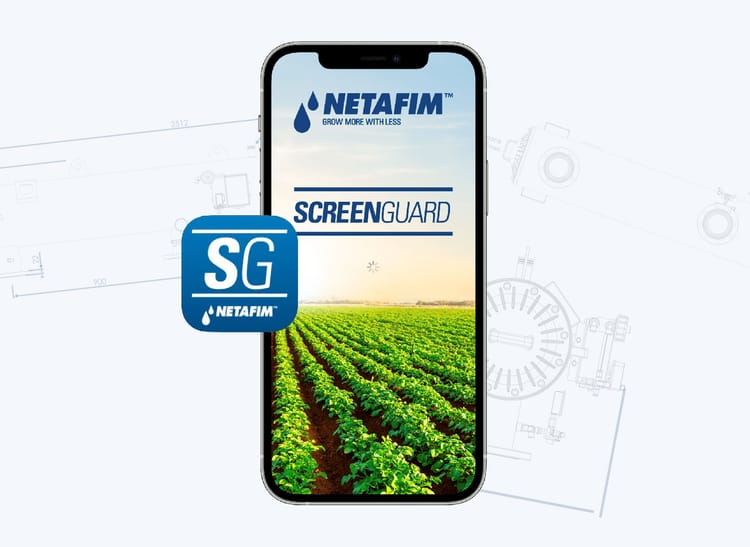

Get Better Control With Netafim SG App

Netafim ScreenGuard™ Automatic Filter is bluetooth activated with the Netafim SG app for better control of filter performance.

Download from the App Store or Google Play.

Product Sheets & Manuals

Product Sheet

ScreenGuard™ Automatic Screen Filters

Manual/Guide

Screenguard™ CAD Details

2''

3''

3'' Super

4"

4" Super

6"

6" Super

8"

10"

Need help finding the best solution for your farm?

Contact a filtration expert to learn which ScreenGuard™ filter is the best fit for your needs

Let's talk
